iTac M06 Side Seam Glue Detection
Side Seam Glue Detection

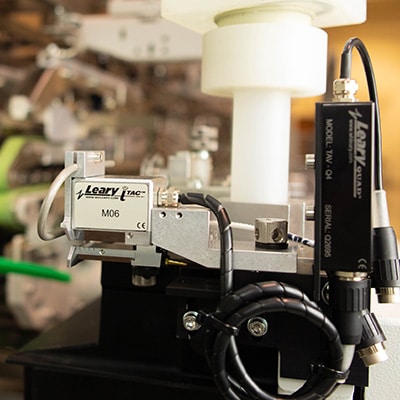

The iTac M06 with QUAD Amplifier works in conjunction with MAQ+ and Array Controllers to provide accurate readings of glue placement, including skips and volume applied by a glue pot (wheel).
The M06 with QUAD Amplifier glue scanner is immune to color variation in the product and requires no UV additives to the glue. A built-in shuttle feature is used to set up the station and test the performance by offsetting the sensor from the glue line for zero adjustments and online validation.
Whether you are scanning for pot or extrusion applications, our iTac line of interchangeable optical heads gives you the flexibility needed for scanning any type of glue pattern.
- Machine speeds greater than 200,000 CPH / 650 m/min (2,150 FPM)
- Integrated shuttle for setup and system validation
- Detects skips as short as .08 in (2 mm)
- Detects lines as narrow as .04 in (1 mm)
- Immune to color variation
- Remote teach capability
Software Overview

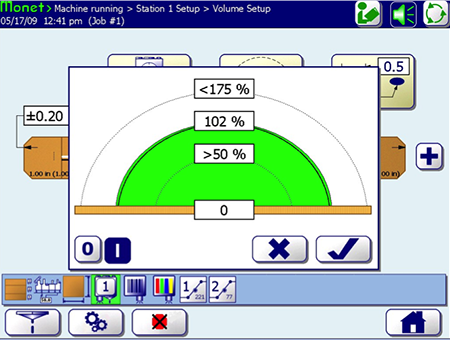

Glue detection capabilities are drastically improved with Monet software technology. Minimize glue usage and ensure against unnecessary squeeze out with the only volume detection solution available.
Fine-tune adjust the sensitivity of glue detection sensors through the Monet screen to avoid crossing safety light curtains which contribute to a plant’s overall efficiency.
Solutions For Your Industry
Leary solutions are offered to improve plant efficiencies, decrease setup time, increase uptime and lower product waste, regardless of machine type.
